Four sizes from 4.3 to 10.1 inches, resistive or capacitive touch and three package options. Drag-and-drop interface design in Visual Screen Creator, TTL (UART) and optional RS485 (Modbus) communication.
16 models
Showing 16 products
AIR800X480S70_E
AirHMI 7" Resistive Elementary
AIR800X480S70_A
AirHMI 7" Resistive Advanced
AIR800X480S70_I
AirHMI 7" Resistive Industry
AIR800X480C70_A
AirHMI 7" Capacitive Advanced
AIR800X480C70_I
AirHMI 7" Capacitive Industry
AIR1024X600S101_E
AirHMI 10.1" Resistive Elementary

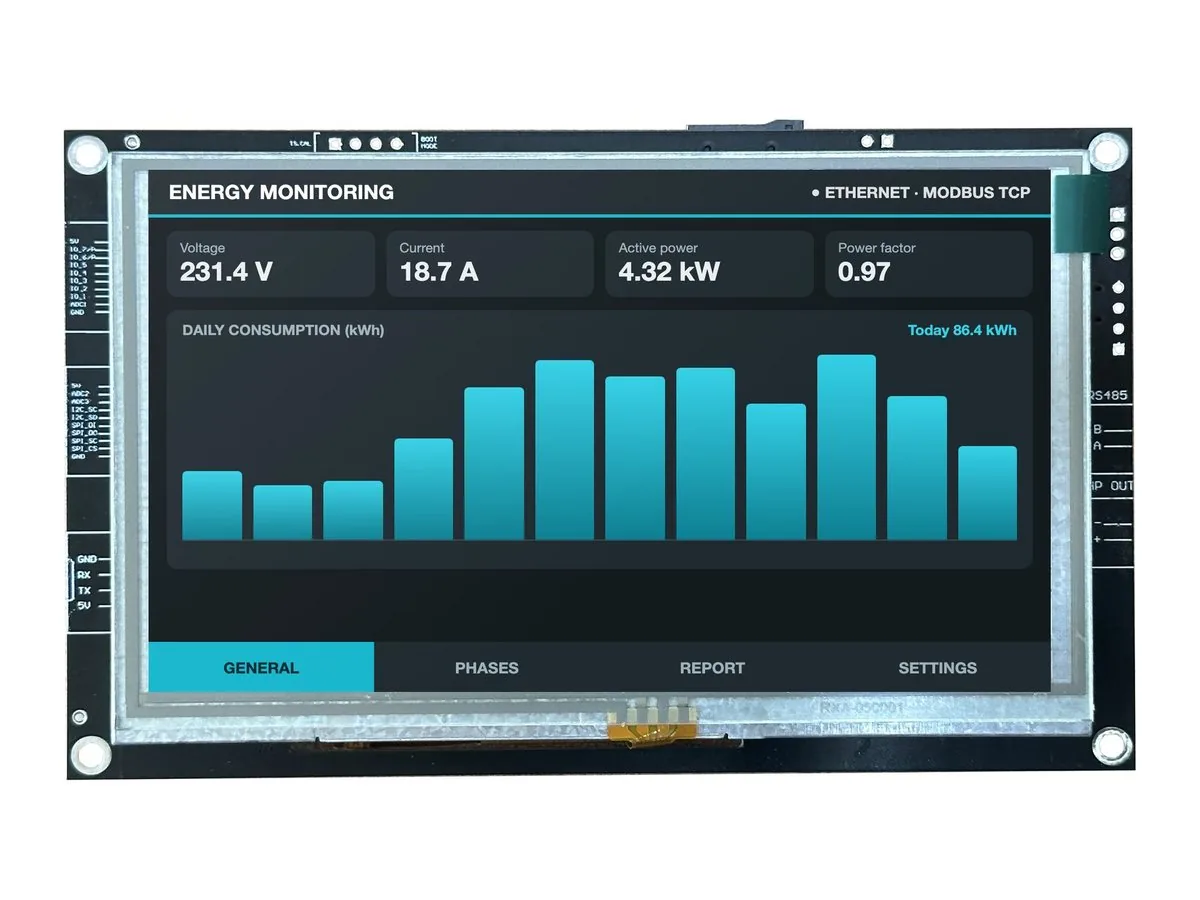

AIR1024X600S101_A
AirHMI 10.1" Resistive Advanced
AIR1024X600S101_I
AirHMI 10.1" Resistive Industry
AIR1024X600C101_A
AirHMI 10.1" Capacitive Advanced
AIR1024X600C101_I
AirHMI 10.1" Capacitive Industry
No model matches the selected features. Change the filters or contact us.
All sizes are offered in Elementary, Advanced and Industry packages; capacitive touch is available on the 7" and 10.1" Advanced / Industry models.
| Feature | Elementary | Advanced | Industry |
|---|---|---|---|
| Flash memory | 16 MB | 32 MB | 32 MB |
| Processor / RAM | 200 MHz / 32 MB | 200 MHz / 32 MB | 200 MHz / 32 MB |
| TTL (UART) | |||
| RS485 (Modbus) | Optional | Optional | Optional |
| SD card | |||
| GPIO | — | 5 | 5 |
| PWM / GPIO | — | 2 | 2 |
| ADC | — | 1 | 3 |
| 5V output | — | 1 | 2 |
| RTC | — | ||
| Built-in buzzer | — | ||
| I2C | — | — | 1 |
| SPI | — | — | 1 |
| Video and audio playback | — | — |
Board dimensions are in millimetres. Mounting drawings can be downloaded as PDF or DXF.
| Size | Resolution | Board size | Mounting hole spacing | Active area | Drawing |
|---|---|---|---|---|---|
| 4.3" | 480 × 272 | 120.06 × 74.01 | 113.60 × 67.60 | 105.50 × 67.20 | PDFDXF |
| 5" | 800 × 480 | 133.48 × 83.95 | 127.08 × 77.55 | 120.67 × 75.80 | PDFDXF |
| 7" | 800 × 480 | 180.97 × 107.31 | 174.90 × 101.60 | 164.90 × 100.00 | PDFDXF |
| 10.1" | 1024 × 600 | 258.00 × 152.00 | 251.60 × 145.60 | 235.00 × 143.00 | PDFDXF |
AirHMI series touch HMI displays are visualisation solutions developed for industrial automation systems. Available in sizes from 4.3 to 10.1 inches, these displays work with all PLC brands thanks to their user-friendly interface and powerful hardware. The Elementary, Advanced and Industry packages let you choose according to your memory, I/O and communication needs.
200 MHz processor, 32 MB RAM and 16 / 32 MB flash memory
Capacitive touch option in 7" and 10.1" sizes
Drag-and-drop design in Visual Screen Creator; programming in C where needed
Connection to PLCs and field devices over TTL (UART) and optional RS485 (Modbus)
GPIO, PWM, ADC, I2C and SPI interfaces depending on the package
AirHMI displays are manufactured in Türkiye and come with a 2-year warranty
Tell us your size, touch and connectivity requirements and our engineering team will recommend the right configuration.
AirHMI displays come in 4.3", 5", 7" and 10.1" sizes. The resolution is 480 × 272 on the 4.3" model, 800 × 480 on the 5" and 7" models and 1024 × 600 pixels on the 10.1" model.
Resistive touch works by pressure; because it can be used with gloves and a stylus it is common on industrial panels. Capacitive touch responds to a light touch like a smartphone and is better suited to multi-touch. The capacitive option is available in the 7" and 10.1" sizes.
Elementary is the basic package with TTL (UART) communication and 16 MB of flash memory. The Advanced package adds 32 MB flash, a real-time clock (RTC), a built-in buzzer, 5 GPIO, 2 PWM and 1 ADC. The Industry package additionally offers 3 ADC, I2C, SPI and video and audio playback.
All models have TTL (UART) communication. RS485 (Modbus RTU) is optional; a display ordered with the RS485 option connects directly to PLCs and field devices.
The interface is designed with drag and drop in the free AIRHMI Designer software, and C-based code can be attached to component events. The project can be tested in the simulator on your computer before it is loaded onto the device.
Yes. The controller sends short text commands to the display over UART and screen events are reported back on the same line. The AIRDUINO library includes ready-made examples for Arduino, ESP32 and STM32.
AirHMI displays are powered from 5 VDC. AirHMI products are manufactured in Türkiye and come with a 2-year warranty.
Displays can be bought in the airhmi.com online shop (Türkiye) by card or bank transfer; items in stock ship within 1–3 business days. For volume orders, international shipments and project-specific needs, please request a quote.
